4K Professional Broadcast PTZ Camera
DCG-UHD800 Series

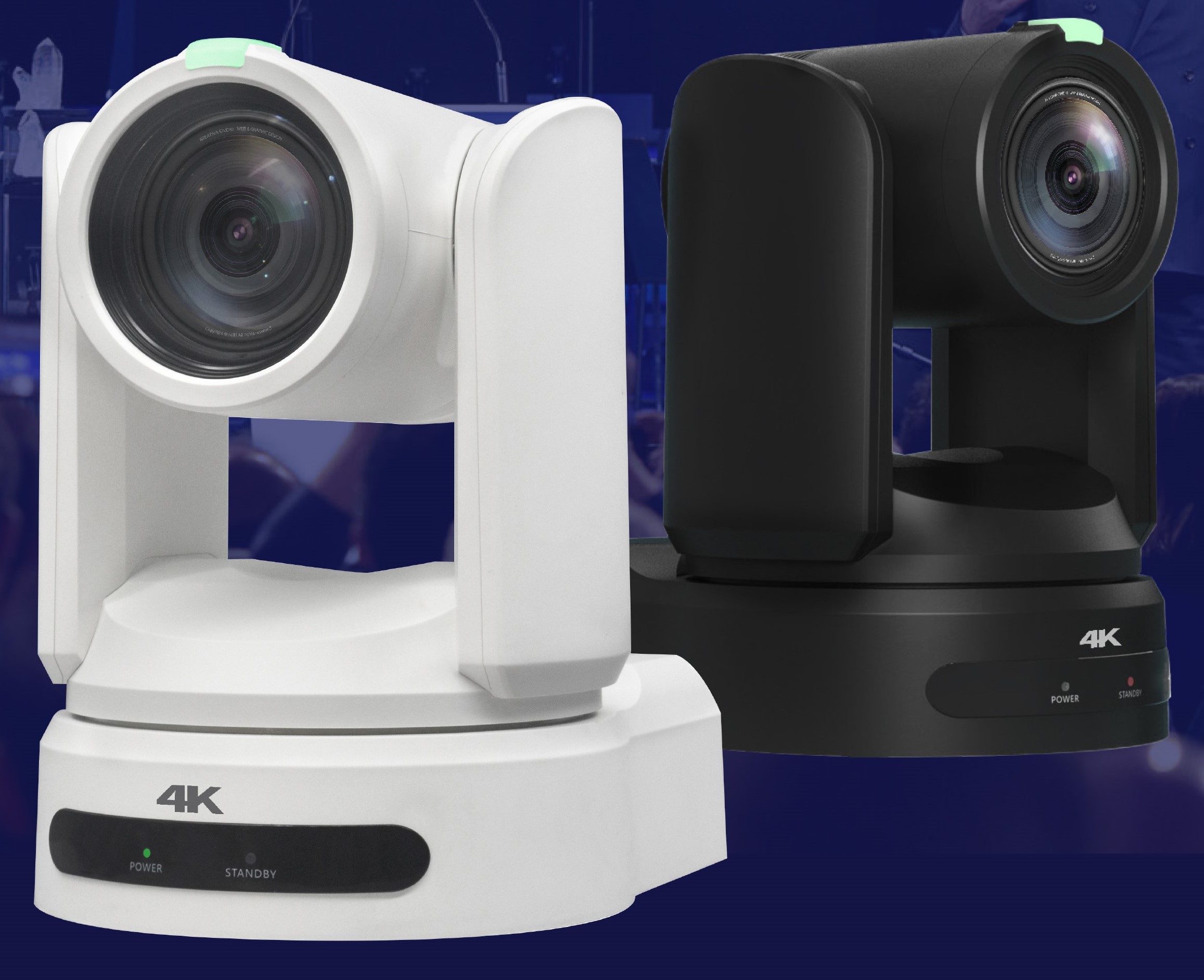

UHD800 adopts a new ROBOTIC concept appearance & U Type design, more stable with a smoother Pan/Tilt move. It will provide users with Real 4K@60 ultra-high-definition video experience which is more Realistic, has better Colors, and additional Clarity.

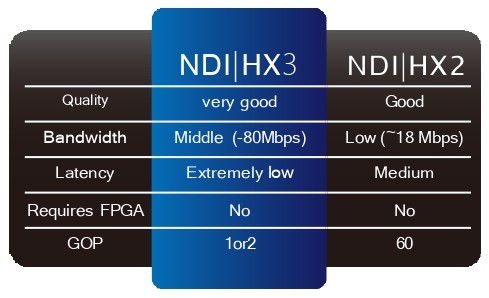

Equipped with 1 /2.5”or 1/1.8” New Generation Sony 4K High quality Sensor, with 12X/20X/30X multiple Optical Zoom lenses, and abundant Video interface; Supports USB 3.0, HDMI 2.0 and 2*3G-SDI or Dual 12G-SDI Video output. It can support NDI/HX3, which gives users the option to join Ultra HD broadcast workflows or transmit low latency UHD video over IP networks; SRT & Free D Protocol also helps user for AR/VR files. The Built-in VISCA/Visca Over IP/ PELCO P/D/ ONVIF communication Protocol allows seamless integration of system control applications.
It can be widely used in Broadcast studios, Education recording, Conferences AV, Telemedicine, Remote training, Court trial systems, Emergency command systems, and Sports & Events Streaming.
Camera Features:
Dual 12G-SDI - new

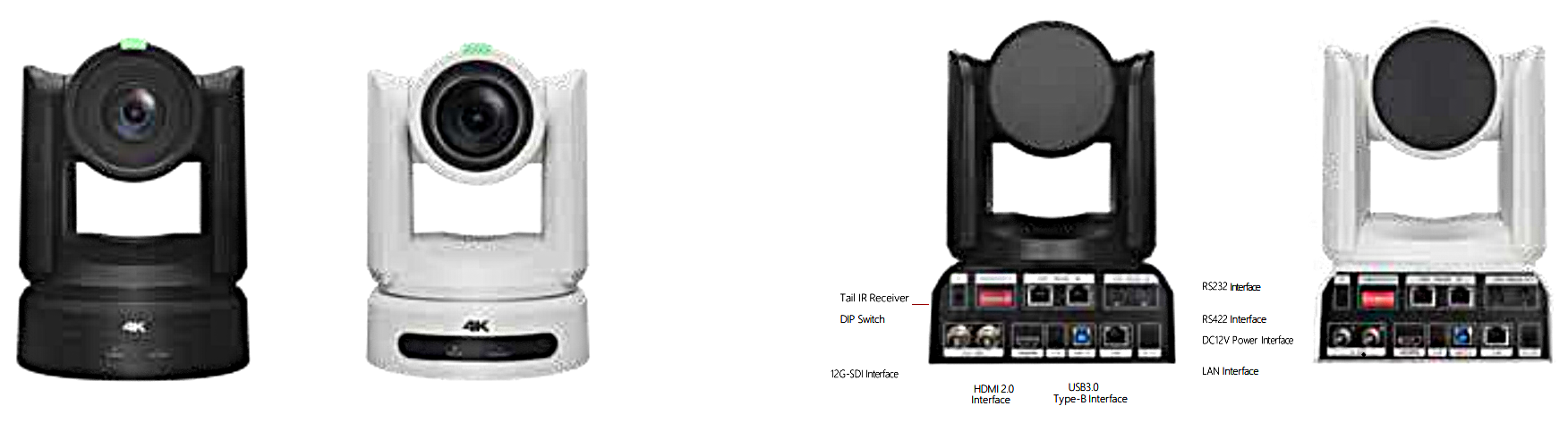

• Abundant Interface
• Synchronous Video Output
• Max Support 255 Presets
Live VR/AR Video Production
Supports multiple communication ways through remote control
• Supports the preset freeze function, scene switching

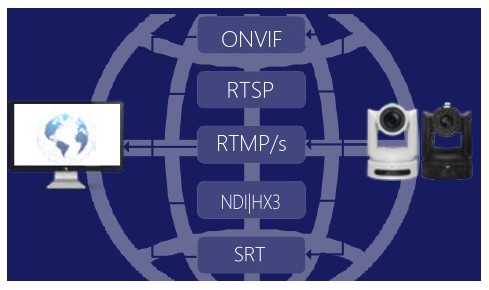

• IP Streaming in your video production
• Double Color Tally Light
• 360 ° infrared remote control
• Stable, Smooth and Silent Pan/Tilt move
Specifications:
| Model | UHD812 | UHD820 | UHD830 |
| Sony 4K CMOS Sensor | 1/2.5” CMOS | 1/1.8” CMOS | 1/1.8” CMOS |
| Zoom | 12X | 20X | 30X |
| Effective Pixels | 8.3 Megapixels | ||
| Optical Zoom |
12x Optical Zoom 12X Digital Zoom |
20x Optical Zoom 12X Digital Zoom |
30x Optical Zoom 12X Digital Zoom |
| Focus Length | f=3.85~43.08mm | f=7.1~141.3mm | f=7.1~211.95mm |
| HFOV | 7.9°(T) ~80.4°(W) | 3.6°(T) ~59.2°(W) | 3.6°(T) ~59.2°(W) |
| Iris | F1.8 ~ F3.68 | F1.61 ~ F5.19 | F1.61 ~ F5.19 |
| Video Format | 2160P60/59.94、2160P50、2160P30/29.97、2160P/25；1080P60/59.94、1080P50、1080P30/29.97、1080P25；1080i60/59.94、1080i50；720P60/59.94、720P50 |
| Min Illumination | 0.05 lux (F1.61) |
| Digital Noise Reduction | 2D&3D Noise Reduction |
| White Balance | Manual/Auto/Indoor/outdoor/One Push//3000K/4000K/5000K/6500K/ATW |
| Focus mode | Manual/Auto/Z- Trigger |
| Iris mode | Manual/Auto |
| BLC | 1-8/OFF |
| Picture adjustment | Brightness, Hue, Saturation, Contrast, Sharpness |
| Video Output Interface | HDMI2.0、3G-SDI*2 or 12G-SDI*2、RJ45、USB3.0 |
| Video Compression Format | H.264、H.265、MJPEG |
| Control interface | 1X RS232 IN, 1X RS232 Out, 1X RS422 IN, 1X RS422 Out , 1X RJ45 |
| Control Protocol | VISCA /PELCO-D / PELCO-P、VISCA OVER IP、ONVIF、UVC（only for USB interface） |
| Baud Rate | 2400/4800/9600/19200/38400bps |
| Audio Input | Dual channel 3.5mm line input |
| Audio Compression | ACC、G711A、G711U |
| Network Interface | 1000M Internet Access(10/100BASE-TX) |
| Network Protocol | RTSP、RTMP、ONVIF、NDI|HX3、SRT、GB28181、VPN |
| Power Interface | DC-038 Outlet (DC12V) |
| Pan Rotation Anglee | -173°~+173° |
| Tilt Rotation Angle | -30°~+90° |
| Horizontal rotation speed range | 0.1~100°/s |
| Vertical rotation speed range | 0.1-80°/s |
| Presets | Max Support 255 Presets |
| Power Adapter | AC100V~AC240V Input, DC12V/2A Output |
| Input Voltage | DV12V |
| Power Consumption | 15W(MAX) |
| Storage Environment | -10°C ~ +60°C / 20% ~ 95% |
| Working Environment | -10°C ~ +50°C / 20% ~ 80% |
